Corflute

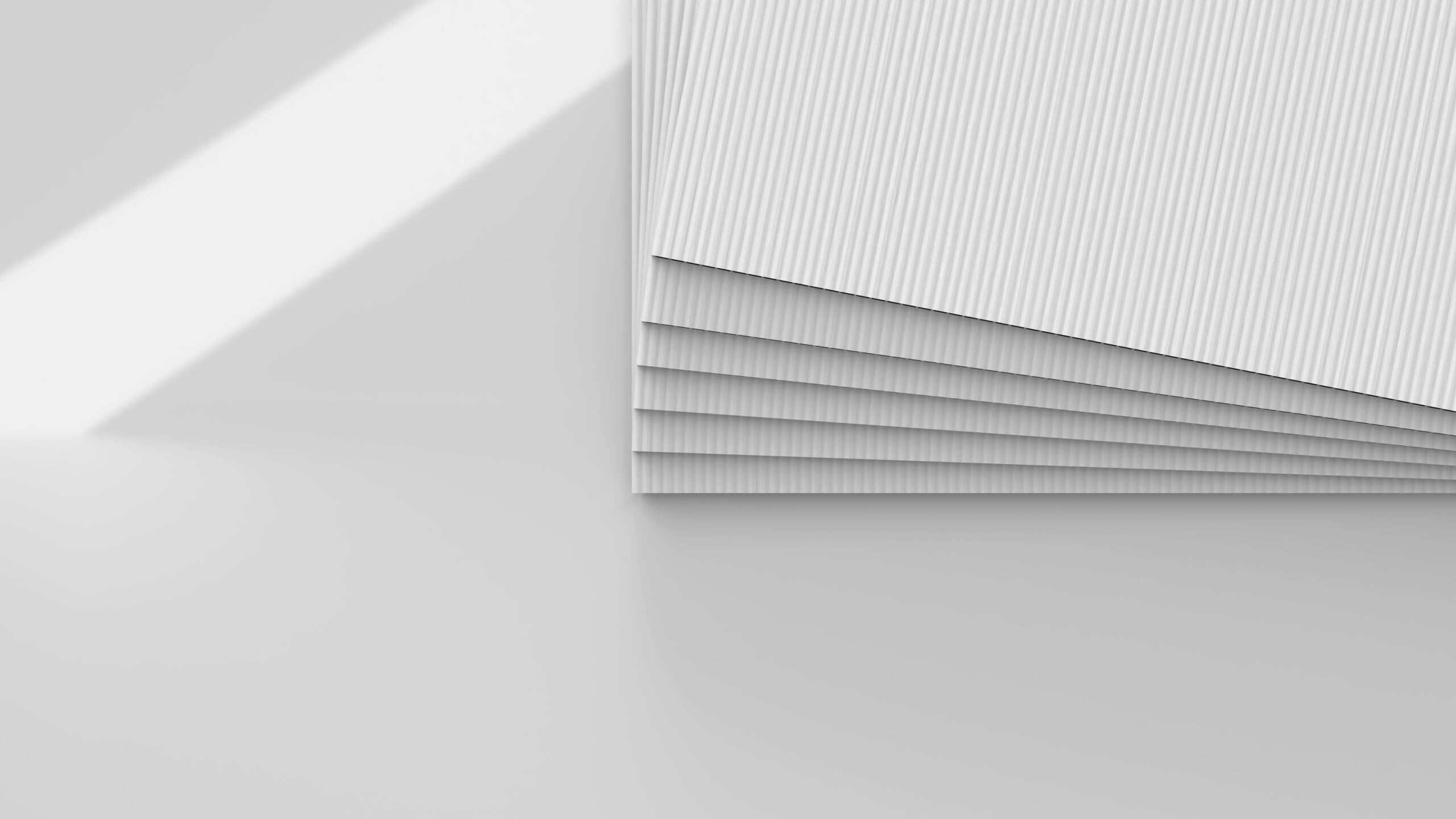

Corflute is a hollow core corrugated plastic sheet built from two outer walls separated by vertical ribs, much like corrugated cardboard but in polypropylene. That structure is what makes corflute sheets so useful. You get a rigid, flat panel at a fraction of the weight and cost of solid plastic, and unlike cardboard it shrugs off rain, sunlight and most chemicals.

Why signwriters and packers choose corflute

• Excellent printability for screen, digital and vinyl application
• Readily fabricated by die cutting, guillotining, scoring and creasing, knife cutting, stapling, fastening and laser cutting
• Good weatherability and UV resistance for outdoor use
• Excellent chemical resistance
• Super lightweight, which keeps freight and handling costs down
• Water resistant, so it does not swell or go soft in the wet

Applications

Corrugated plastic is the default material for short to medium life signage and reusable packaging. Common uses include:

• Indoor and outdoor signage
• Real estate signs, auction boards and site signage
• Election and event signage
• Protective packaging and returnable transit boxes
• Header boards and shelf talkers
• Carry boxes and tote bins
• Display boards and exhibition panels
• Floor and surface protection during fit-outs and renovations

Working with the flute direction

The flutes run the length of the sheet, and the panel is considerably stiffer along the flute than across it. For a sign that has to stand up to wind, run the flutes vertically so the panel resists bending. If you are folding corflute into a box or a header, score along the flute for a clean hinge. This is worth thinking about before you cut, because it is the single biggest factor in how rigid the finished job feels.

Sizes and colours

• Colour: corflute white or black
• Sheet size: 1200mm x 2400mm (2400 x 1200 standard sheet)
• Sheet thickness: 3mm or 5mm

The 3mm sheet suits most flat signage and light packaging. The 5mm sheet is the better option for larger format signs, free standing boards and anything that will be handled repeatedly or reused across multiple jobs.

3mm or 5mm, which do you need

If the panel is under about 900mm on its longest side and will be fixed flat to a wall or frame, 3mm is usually plenty and it is the cheaper option. Once you go past that, or if the sign is free standing on stakes, step up to 5mm. Corflute white is the standard choice because it gives printing and vinyl a clean base, while black is often preferred for display work and backing panels.

Cut to size and Australia-wide supply

We hold corflute in stock at our Hobart workshop and cut it down to your dimensions on site, so you can order the exact panel sizes your job needs instead of buying full sheets and trimming them yourself. That matters when you are producing a run of identical signs and want every one to match. We can also laser cut and router cut corflute for shaped signage, lettering and die cut packaging inserts.

Associated Plastics has been supplying the trade since 1979, and we deliver Australia-wide. Send through your sizes and quantities and we will confirm the best thickness and the most economical way to cut the sheet.
